Laserfibre MS200 ECO Double Action Fixed Clamp Kit

Delivery | Assembly | Initial Impression

Upgrade Kit Components


Assembly

Installing the kit to the ECO is simple and easy.

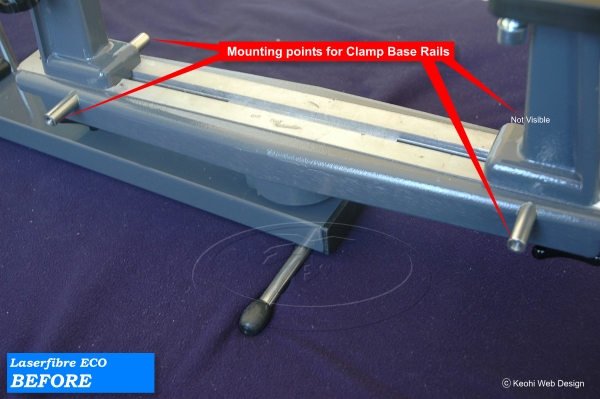

  1. Install one end of a clamp base rail to one of the mounting points shown below.
  2. Slide a clamp base through the open end of the base rail.
  3. Secure the open end of the base rail to the turntable using another set of screw and washer.

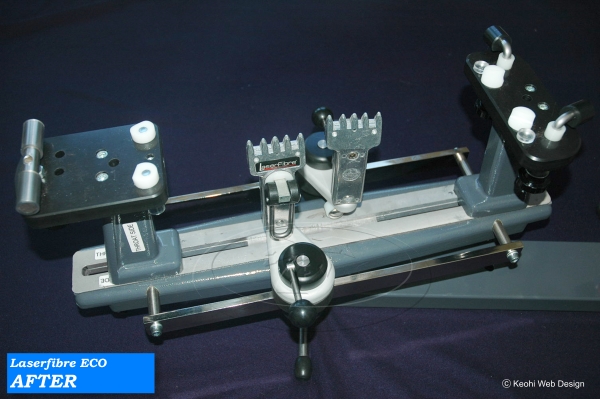

  4. Repeat the process on the other side of the turntable.
  5. That's it!
