CT36HX41 Alignment
<< Back to Panasonic Tips
Tip from Jim Forgione: "I
recently purchased a Pana 36 Tau series HDTV (CT36HX41). The color
'balance' and b/w tracking was not to my liking. So after reading the
information on you fabulous site, I set out to improve it.
This table below shows my initial values (jrf_ini), a second
set's values (set_#2), and my final adjustments (jrf_final)
to effect a good color balance and gray scale tracking. Although
these values may be different from another set, they represent "good" starting
points.

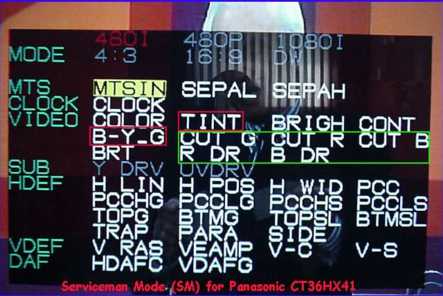

The picture shows the set in the Serviceman Mode (SM) with the 'key' parameters in red;
the b/w tracking and color drive in green; B-Y_G and TINT in red mainly control the
look of the final picture.
The picture shows the set in the SM with the 'key'
parameters in red; the b/w tracking and color drive in green.
NOTE: The user controls have re-normalized so that after performing a
"reset", all parameters (except the PICTURE) will be in the 'middle'
of their ranges. Therefore the user need only change one control, namely the
SHARPNESS to suit their taste. The COLOR, TINT, BRIGHTNESS will be ok as is.
- Color
= 31
- Tint
= 31
- Picture
= 63
- Brightness
= 31
- Sharpness
= 31 <- set to your taste
Update
Here's the latest (and last, I hope) update for my Pana HDTV 'adventure'!
As you can see from the table below, it's has expanded into three (3) sets. That's
because that's how many it has taken to 'satisfy' me. A TV sets convergence is my Achilles
heel. I do not like a sloppily converged set. If so, I fix it if I can.
Although today, it's a lot more difficult to do since it's all done by 'stick-on' magnetic
strips.
Anyway, the chart shows the results of tweaking and the final values of the
adjustable parameters to obtain what really is very good, balanced natural color. SET_3
was delivered a few days ago, and it's the one whose as-delivered convergence
and purity was acceptable.
MTS Adjustments |
Description |
Mem
Location |
Default |
Set_1 |
Set_2 |
Set_3 |
Final |
MTSIN |
Input Level |
AE 0E |
9 |
6 |
7 |
5 |
---- |
SEPAL |
Low Freq Separation |
AE 0F |
1F |
17 |
1B |
1F |
---- |
SEPAH |
Hi Freq Separation |
AE 10 |
1F |
17 |
27 |
2A |
---- |
CLOCK Adjustments |
Description |
Mem Location |
Default |
Set_1 |
Set_2 |
Set_3 |
Final |
CLOCK |
Synthesizer Adjust |
AE 12 |
128 |
114 |
121 |
118 |
---- |
VIDEO Adjustments |
Description |
Mem Location |
Default |
Set_1 |
Set_2 |
Set_3 |
Final |
COLOR |
COLOR Adjust |
AA 8F |
24 |
32 |
2D |
28 |
1A |
TINT |
TINT Adjust [key] |
AA 91 |
1F |
28 |
22 |
25 |
2A |
BRIGHT |
SUB-BRIGHTNESS |
AA 93 |
60 |
62 |
61 |
67 |
6A |
CONT |
SUB-CONTRAST |
AA 95 |
22 |
21 |
21 |
28 |
---- |
B-Y_G |
COLOR Adj (Magenta)
[key] |
AA AE |
2F |
2F |
27 |
2B |
2F |
CUT
G |
GREEN CUTOFF: scrn
control [key] |
AA CC |
02 D2 |
03
3D |
02
FA |
02
D5 |
02 D0 |
CUT
R |
RED CUTOFF: scrn
control [key] |
AA C8 |
02 92 |
03
19 |
02
A3 |
01
FB |
01 FA |
CUT
B |
BLUE CUTOFF: scrn
control [key] |
AA DO |
02 56 |
02
91 |
01
EB |
01
A0 |
01 9A |
BRT |
TEMP BRIGHTNESS |
doesn't write to
EEPROM |
60 |
60 |
60 |
67 |
6A |
R
DR |
RED DRIVE |
AA 96 |
B1 |
A6 |
B8 |
BB |
---- |
B
DR |
BLUE DRIVE |
AA 98 |
AD |
BD |
CF |
EA |
CF |
|
|
|
|
|
|
|
|
H DEF
Adjustments |
Description |
Mem
Location |
Default |
Set_1 |
Set_2 |
Set_3 |
Final |
H LIN |
HORIZONTAL
LINEARITY |
AA 76 |
5F |
CF |
CF |
CF |
---- |
H POS |
HORIZONTAL
CENTERING |
AA EA |
37 |
3E |
41 |
34 |
---- |
H WID |
HORIZONTAL WIDTH |
A8 32 |
4F |
5B |
5C |
4D |
---- |
PCC |
PINCUSHION
CORRECTION |
A8 30 |
48 |
51 |
4A |
4E |
51 |
PCCHG |
PINCUSHION TOP GAIN |
A8 56 |
2 |
0C |
0C |
0C |
0E |
PCCLG |
PINCUSHION BOTTOM
GAIN |
A8 60 |
1 |
7 |
7 |
7 |
10 |
PCCHS |
PINCUSHION TOP
SLICE LEVEL |
A8 B6 |
0 |
9 |
9 |
9 |
0C |
PCCLS |
PINCUSHION BOTTOM
SLICE LEVEL |
A8 B1 |
1 |
0B |
0B |
0B |
0A |
TOPG |
TOP CORNER GAIN |
A8 A2 |
13 |
12 |
12 |
11 |
0F |
BTMG |
BOTTOM CORNER GAIN |
A8 AC |
11 |
13 |
13 |
12 |
10 |
TOPSL |
TOP CORNER SLICE
LEVEL |
A8 46 |
1 |
0 |
0 |
2 |
6 |
BTMSL |
BOTTOM CORNER SLICE
LEVEL |
A8 3C |
0B |
3 |
3 |
7 |
5 |
TRAP |
TRAPEZOID |
A8 2B |
75 |
74 |
76 |
76 |
78 |
PARA |
PARALLOGRAM |
A8 65 |
7 |
0F |
9 |
0B |
0 |
SIDE |
PINCUSHION BALANCE
ADJUST |
A8 6A |
0 |
3 |
3 |
1 |
2 |
|
|
|
|
|
|
|
|
VDEF
Adjustments |
Description |
Mem
Location |
Default |
Set_1 |
Set_2 |
Set_3 |
Final |
VRAS |
VERTICAL CENTERING |
AA 72 |
27 |
22 |
4F |
4 |
---- |
VEAMP |
VERTICAL WIDTH |
A8 14 |
62 |
55 |
65 |
59 |
---- |
V-C |
VERTICAL
LINEARITY_1 |
A8 7E |
22 |
21 |
21 |
22 |
21 |
V-S |
VERTICAL
LINEARITY_2 |
A8 74 |
1E |
17 |
17 |
17 |
---- |
|
|
|
|
|
|
|
|
DAF
Adjustments |
Description |
Mem
Location |
Default |
Set_1 |
Set_2 |
Set_3 |
Final |
HDAFC |
HORIZONTAL DAF |
A8 05 |
17 |
15 |
16 |
15 |
---- |
VDAFG |
VERTICAL DAF |
A8 C5 |
AA |
AA |
AA |
AA |
---- |
NOTES:
'Default' = values from Service Manual. Set_1, _2 and _3 are the settings as
delivered.
'Final' = finished values.
-----" is the same as 'Set_3' values.
Parameters marked "[key]" are most
important to setup balanced true-color video.
Quick Entry to SERVICEMAN MODE
- Select SETUP icon and select CABLE mode.
- Select TIMER icon and set SLEEP time to 30 Min.
- Press ACTION twice to exit menus.
- Tune to channel 124
- Adjust VOL to minimum (0).
- Press VOL decrease on RECEIVER front panel. Red "CHK" appears on the screen.
After Receiver is set to SM mode, set TIMER back to NO.
- Press POWER on the remote control to display the SM Adjustment Menus. Select the
adjustment to be done by using
- CH up/down and/or VOL left/right buttons.
- Press ACTION to enter into the adjustment.
- Use VOL left/rigth buttons to make changes. Press ACTION to exit and save changes.
Make sure to write down values BEFORE making any changes!
Exiting from SERVICEMAN MODE
- Press ACTION and POWER on the receiver simultaneously for at least 2 seconds. The
receiver exits the SM mode and is tuned to Ch 3 showing results of an internal self
test. User settings are erased.
|
